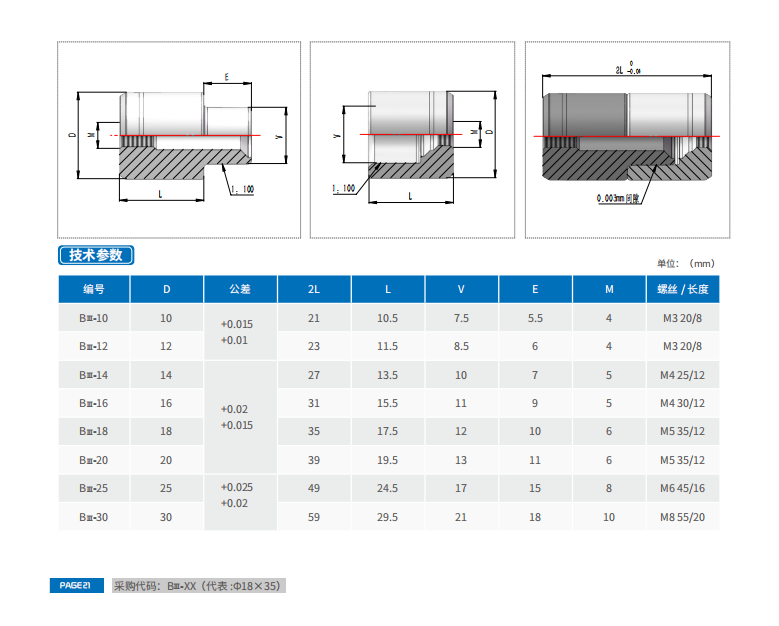

Product name : Small Tapered Angle Centering Unit BⅢ

Product details：

Suitable to used in high precision plastic mold,CNC machine,Automatic machine tools

1.Abrasion resistance, rust resistance (D2)

2.Vacuum treatment, balanced hardness (HRC 60-62)
3.Designed locating clearance:0.002mm(adjustable clerance:add 0.002mm deeper for post and bushing to add 0.005mm locating clearance)
4.The small tapered angle not only help mold locating precisely but also interlocak mold stably.
5.Small tapered angle make the product have better performance of abrasion resistance and no (machine) jammed.
